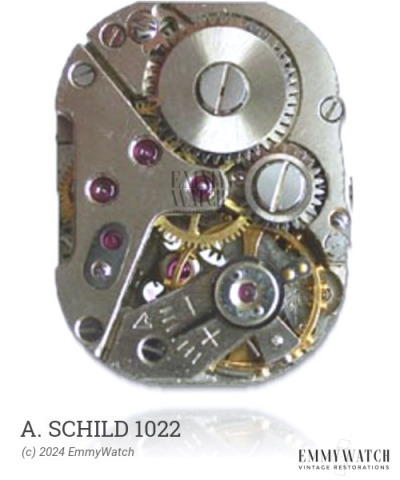

A. Schild 1022
(AS, A Schild)
Ligne: 6.75 x 8'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Size: 15.35 x 18.2 mm
Hands: 1.10 x 0.65 x 0.18 mm
The A. Schild 1022 watch movement features an early fixed or later mobile stud carrier. It is a manual wind movement that includes functions such as sweep seconds, date display, and a calendar complication.
The A. Schild 1022 features the following functions:
- Calendar
- Date
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 240 x 7.0 mm | GR3473 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
