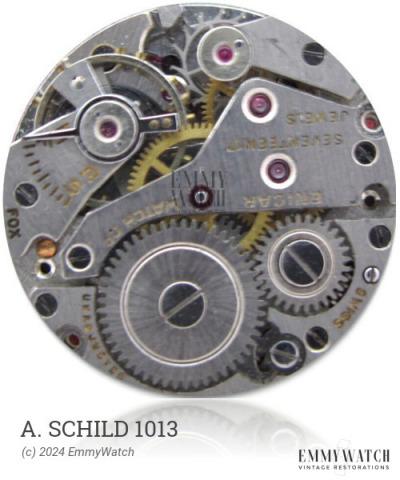

A. Schild 1013
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15/17
Lift Angle: 52°
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Height: 4.5 mm
Hands: 1.31 x 0.85 x 0.22 mm
The A. Schild 1013 is a manual wind watch movement that features sweep seconds. It shares similarities with the A. Schild 1497, but the differences between the two are not known.
The A. Schild 1013 features the following functions:
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 173 | Ordinary/None | Buy staff |
| 5451 | Ordinary/None | Buy staff |
| 280 | Incabloc | Buy staff |
| 5305 | Incabloc | Buy staff |
| 3256 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.105 x 280 x 9.0 mm | GR41332 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
