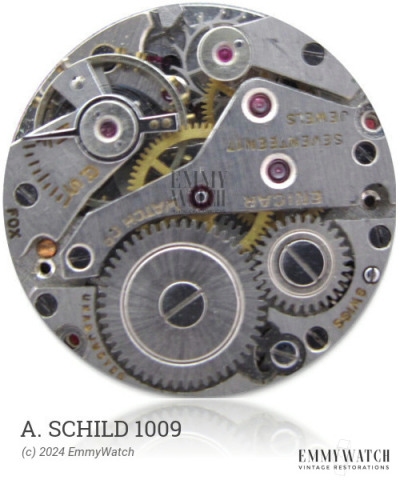

A. Schild 1009
(AS, A Schild)
Ligne: 8.75'''
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 19.7 mm
Height: 3.4 mm
Hands: 1.20 x 0.60 / 0.11 mm
The A. Schild 1009 watch movement is a manual wind movement that features a sub second function. It was produced around 1925. The movement is part of a series that includes models 60-III, 61 through 64, 68, 72, 77, 81, 86, 93, 96, 99, 102, 104, 107, 108, and 154. Additional details regarding the specific differences between these models are unknown.
The A. Schild 1009 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.080 x 215 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
