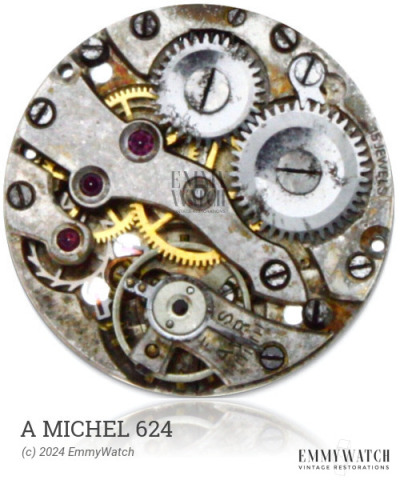

A Michel 624
Ligne: 8.75'''
Jewels: 7/15/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1935-1967
Diameter: 19.7 mm
Height: 3.45 mm
Hands: 1.20 x 0.65 / 0.18 mm
The A Michel 624 watch movement is a manual wind mechanical movement that features a sub second display. Produced between 1935 and 1967, this movement was manufactured in large quantities, with over 16,000,000 units being produced. Notably, the A Michel 624 movement does not include a separate escape-wheel cock. While there were variations in balances and calibre designations within this movement family, the similarities were significant enough that parts could be interchanged. Additionally, there are other calibres that closely resemble the A Michel 624, with a height (H) of 3.0mm.
The A Michel 624 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.080 x 260 x 7.0 mm | GR4446 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
