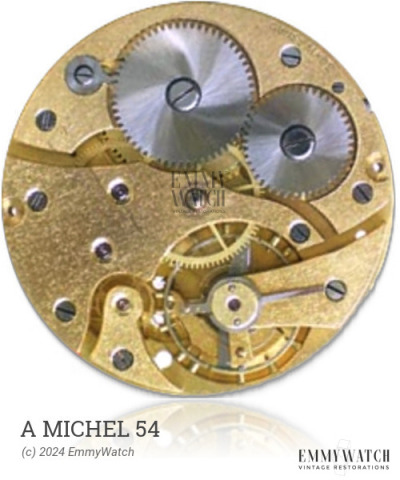

A Michel 54
Ligne: 10.5'''
Jewels: 7
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1952
Diameter: 23.8 mm
Hands: 1.50 x 1.00 mm
The A Michel 54 watch movement, utilized circa 1952, features a pin-lever escapement, a ratchet on the dial side, and a crown mechanism with a rocker bar. The movement is built on a two-layer base plate and incorporates manual winding and a sweep second function.
The A Michel 54 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1930 | Ordinary/None | Buy staff |
| 4051 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.120 x 270 x 9.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.110 x 300 x 9.0 mm | GR4149 | Manual | Buy mainspring |
| 1.50 x 0.105 x 280 x 9.0 mm | GR41332 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
