A Michel 526
Ligne: 10.5'''
Jewels: 15
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 23.65 mm
Height: 4.0 mm
Hands: 1.40 x 0.80 / 0.18 mm
Base: Venus 75

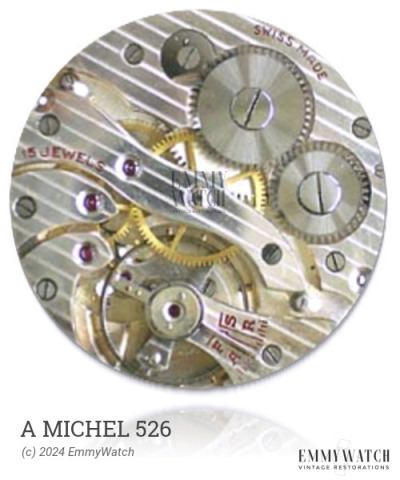

The A Michel 526 watch movement features a manual wind mechanism and a sub-second function. Its design incorporates a triangular train cock, which may correspond to the catalog designation labeled as the Venus 98. This movement was used around the period of 1945.
The A Michel 526 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
