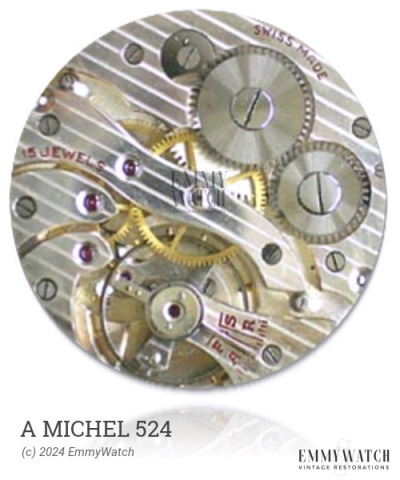

A Michel 524
Ligne: 11.75'''
Jewels: 17/23/25
Lift Angle: 52°
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1962-
Diameter: 26.8 mm
Height: 3.95 mm
Hands: 1.50 x 0.90 x 0.20 mm
The A Michel 524 is a manual wind mechanical watch movement introduced in 1962. It features an Eniflex bearing for the escape wheel. This movement includes functions such as sweep seconds, a date complication that can be set by changing the time to 19:30-24h, as well as a calendar feature. The A Michel 524 movement was utilized in watches during the period of 1962 and onwards.
The A Michel 524 features the following functions:
- Calendar
- Date: set by changing 19:30-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4776 | Ordinary/None | Buy staff |
| 4776 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.115 x 380 x 11.0 mm | GR3718 | Manual | Buy mainspring |
| 1.40 x 0.110 x 350 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
