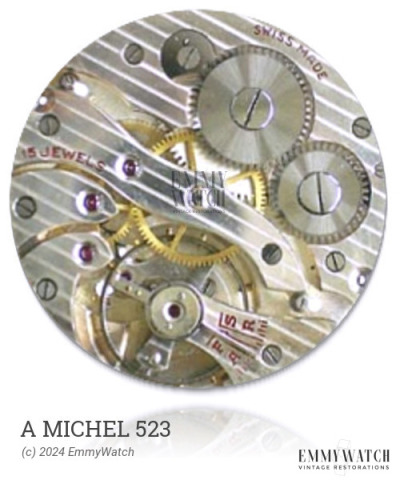

A Michel 523
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 46 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1955-1978
Diameter: 26 mm
Height: 5.75 mm
Hands: 2.10 x 1.30 x 0.90 x 0.22 mm
Base: A. Schild 1475
The A Michel 523 watch movement, produced from 1955 to 1978, shares similarities with the 901 movement, although the differences between the two are unspecified. It features a manual-wind alarm function, sweep seconds, and Incabloc Shock Protection. The movement also includes case winding and sweep seconds features.
The A Michel 523 features the following functions:
- Alarm Complication
- Incabloc Shock Protection
- Manual-wind alarm
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
