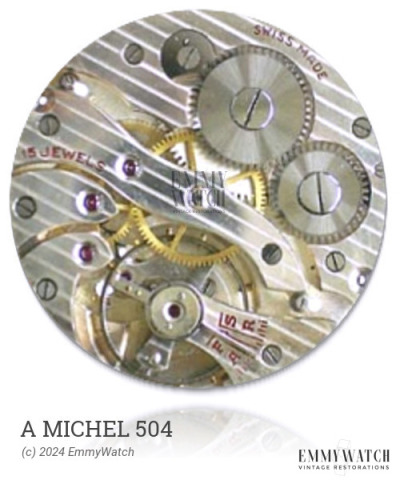

The A Michel 504 is an open face calibre pocket watch movement. It offers options of a bimetallic screw balance and a Breguet hairspring. This movement comes in various sizes, including 18.5 und 19''', with heights ranging from 4.2mm to 5.9mm. It features different bridge layouts, two base plates with varying dial-feet positions, and two slightly differing setting-lever springs. The assignment of these differences to specific groups and calibres is partially known. Comparing the related calibres provides insights into their similarities and variations. The A Michel 504 movement combines functions like stem wind and set, sub second, and was commonly used during the period around 1940.
The A Michel 504 features the following functions:
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1013 | Ordinary/None | Buy staff |
| 2094 | Ordinary/None | Buy staff |
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.90 x 0.180 x 580 x 17.0 mm | GR5624 | Manual | Buy mainspring |
| 1.25 x 0.105 x 280 x 8.5 mm | GR3124 | Manual | Buy mainspring |
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
| Part Description | Reference # | Alternate | Buy |
|---|
