A Michel 495
Ligne: 10.5'''
Jewels: 7/17/23
Power Reserve: 41 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 x 0.20 mm

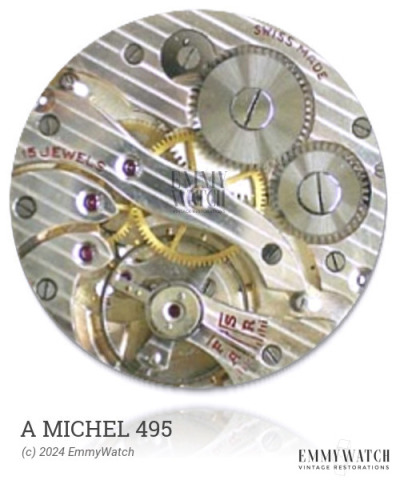

The A Michel 495 is a mechanical watch movement predominantly used in manual wind watches from approximately 1970. Notably, late samples of this movement feature a glued hairspring terminal and utilize a stem mechanism without a setting-lever spring. It is interesting to observe that the train and hand gear are individually driven by the barrel. Its functionality includes manual winding and a sweep second hand.
The A Michel 495 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 360 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
