A Michel 490
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.21 mm

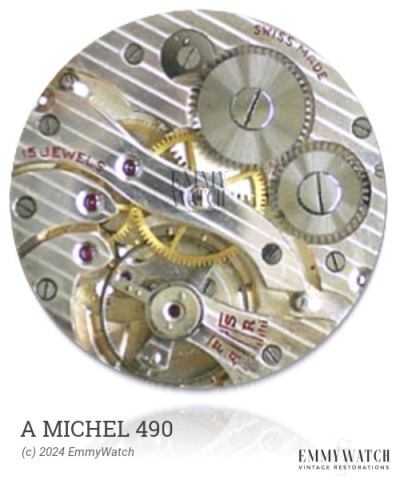

The A Michel 490 is a mechanical watch movement that was produced around 1960. It features a manual wind function and a sweep second hand. It is part of a group of movements, including the 2391, 2393, 2395, 2397, 2399, 2401, and 2405, with differences between them not being known. Therefore, it is difficult to provide detailed specifications for the A Michel 490 compared to the other movements in this group.
The A Michel 490 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.115 x 320 x 9.5 mm | GR3295 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
