A Michel 485
Ligne: 6.75 x 8'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 51 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Size: 15.2 x 17.85 mm
Height: 3.5 mm
Hands: 1.00 x 0.60 mm

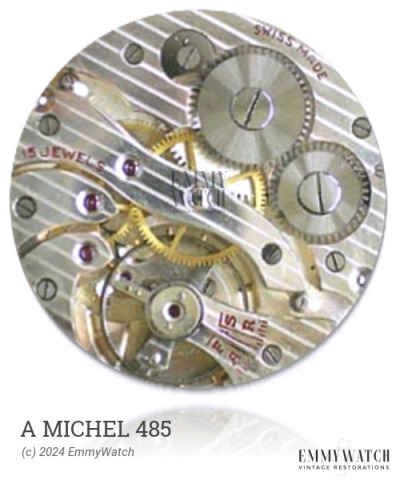

The A Michel 485 watch movement features a combination of aspects similar to those found in the Roamer 440 movement. However, the specific differences between the two are not known. Notably, the A Michel 485 incorporates the Kif-Duofix combined setting for the escapement wheel. Additionally, it is a manually wound movement equipped with an adjustable Stud Holder and Shock Protection. The A Michel 485 movement was utilized during the approximate period of 1965.
The A Michel 485 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Shock Protection
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.070 x 260 x 7.0 mm | GR4429 | Manual | Buy mainspring |
| 1.60 x 0.080 x 240 x 7.0 mm | GR4445 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
