A Michel 320
Ligne: 5.75 x 6.75'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1949
Size: 13 x 15.6 mm
Height: 3.5 mm
Hands: 1.05 x 0.55 mm
Base: A. Schild 1012
The A Michel 320 watch movement is a mechanical movement that requires manual winding. It was widely used around 1949. The specific technical differences between the 5AB and 5AF models are not known.
The A Michel 320 features the following functions:
- Manual Winding
- Mechanical Movement
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.060 x 220 x 6.0 mm | GR3562 | Manual | Buy mainspring |
| 1.40 x 0.060 x 210 x 6.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

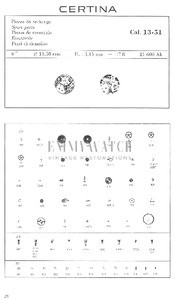

Parts Listing
