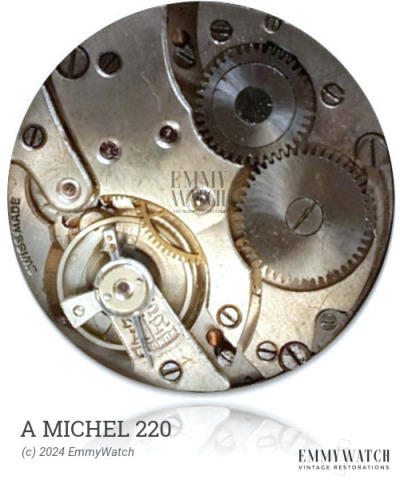

A Michel 220
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 23.7 mm
Height: 4.35 mm
Hands: 1.40 x 0.90 x 0.18 mm
Base: Osco 400
The A Michel 220 watch movement features a ratchet on the dial side and a crown mechanism with a rocker bar. It is a manual wind movement with sweep seconds and bascule winding. The movement also incorporates shock protection and sweep seconds. The A Michel 220 was used approximately around 1965.
The A Michel 220 features the following functions:
- Manual Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5131 | Ordinary/None | Buy staff |
| 5425 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
