A Michel 196
Ligne: 11.5'''
Jewels: 15/17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 26 mm
Hands: 1.50 x 0.90 x 0.20 mm

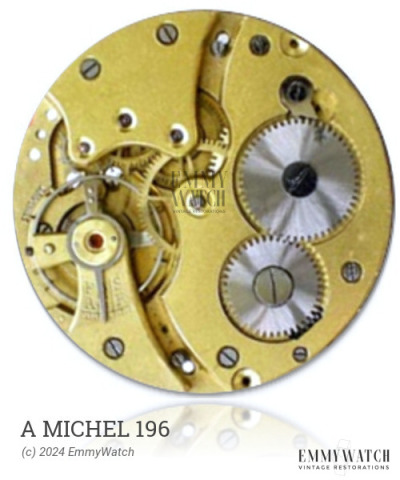

The A Michel 196 is a manual wind mechanical watch movement with sweep seconds functionality. It is part of a series of movements that includes the 932, 1017, and 1019, with likely differences in bridge designs. The A Michel 196 movement was primarily used around the period of 1945.
The A Michel 196 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.55 x 0.105 x 280 x 9.0 mm | GR4390 | Manual | Buy mainspring |
| 1.50 x 0.110 x 300 x 9.0 mm | GR4149 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
