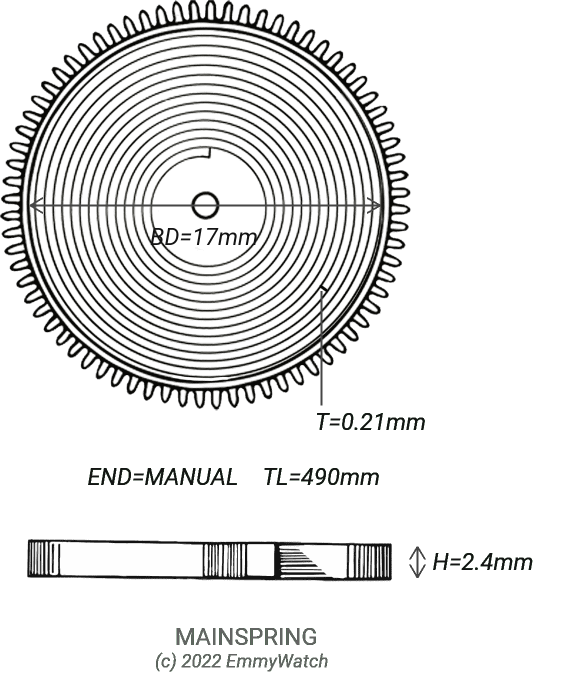

Mainspring
2.40 x 0.210 x 490 x 17.0 mm
Height (H): 2.4mm
Thickness (T): 0.21mm
Total Length (TL): 490mm
Barrel Diameter (BD): 17mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
| GR Reference # | Mainspring | Buy |
|---|---|---|
| GR65801 | 2.40 x 0.210 x 500 (490) x 16.5 (17.0) mm | Buy mainspring |
| GR6567 | 2.40 x 0.195 (0.210) x 460 (490) x 16.5 (17.0) mm | Buy mainspring |
Movement Listing
This mainspring is used by the following movements:
