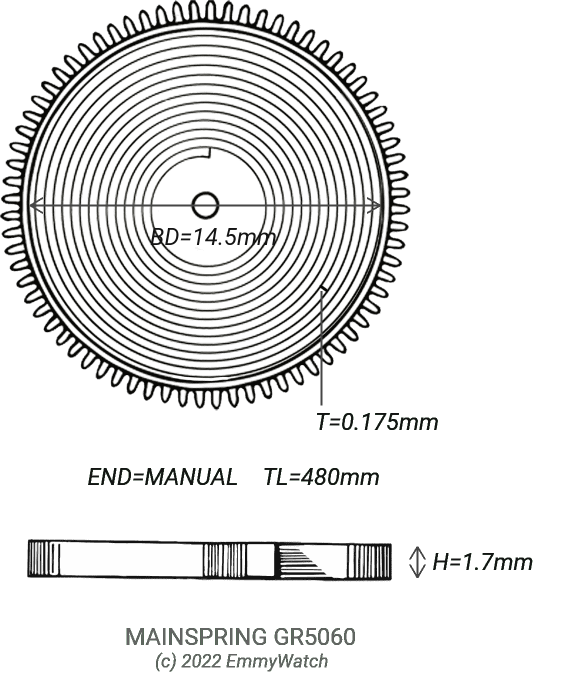

Mainspring

1.70 x 0.175 x 480 x 14.5 mm

GR Reference #: GR5060

Height (H): 1.7mm

Thickness (T): 0.175mm

Total Length (TL): 480mm

Barrel Diameter (BD): 14.5mm

End Type: Manual

The Height (H) (1.70mm) is selected. Return to full mainspring page here.

Buy this mainspring

Similar Mainspring Listing

The Height (H) (1.70mm) in this mainspring is also used by the following movements with similar mainsprings. When values differ the exact value is shown brackets for reference:

Movement	Mainspring	Buy
Bettlach 814	1.70 x 0.180 (0.175) x 480 x 14.5 mm	Buy mainspring
Buren 655	1.70 x 0.170 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1052	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
Fontainemelon 44	1.70 x 0.170 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
Buren 12/S NEG	1.70 x 0.170 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
Alpina 355	1.70 x 0.170 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
Hanhart 40	1.70 x 0.165 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
Wittnauer 51	1.70 x 0.180 (0.175) x 500 (480) x 15.0 (14.5) mm	Buy mainspring
Wittnauer 52	1.70 x 0.180 (0.175) x 500 (480) x 15.0 (14.5) mm	Buy mainspring
Revue 52	1.70 x 0.175 x 520 (480) x 15.0 (14.5) mm	Buy mainspring
Lemania 18	1.70 x 0.175 x 520 (480) x 15.0 (14.5) mm	Buy mainspring
Roamer 407	1.70 x 0.190 (0.175) x 480 x 15.0 (14.5) mm	Buy mainspring
Roamer 408	1.70 x 0.190 (0.175) x 480 x 15.0 (14.5) mm	Buy mainspring
Felsa 160	1.70 x 0.190 (0.175) x 480 x 15.0 (14.5) mm	Buy mainspring
Felsa 161	1.70 x 0.190 (0.175) x 480 x 15.0 (14.5) mm	Buy mainspring
Hanhart 40	1.70 x 0.165 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
Eterna 131	1.70 x 0.170 (0.175) x 440 (480) x 14.0 (14.5) mm	Buy mainspring
Recta B	1.70 x 0.170 (0.175) x 440 (480) x 14.0 (14.5) mm	Buy mainspring
Recta D	1.70 x 0.170 (0.175) x 440 (480) x 14.0 (14.5) mm	Buy mainspring
Eterna 132	1.70 x 0.170 (0.175) x 440 (480) x 14.0 (14.5) mm	Buy mainspring
Recta C	1.70 x 0.170 (0.175) x 440 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1121	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1054	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1064	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1063	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1052	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1076	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1071	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1514	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1068	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
Girard Perregaux 24	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
Winton 13-8	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1067	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1072	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1369	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1075	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1080	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1087	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
A. Schild 1148	1.70 x 0.160 (0.175) x 460 (480) x 14.0 (14.5) mm	Buy mainspring
Heuer 918	1.70 x 0.190 (0.175) x 440 (480) x 15.0 (14.5) mm	Buy mainspring
Heuer 928	1.70 x 0.190 (0.175) x 440 (480) x 15.0 (14.5) mm	Buy mainspring
Heuer 736	1.70 x 0.190 (0.175) x 440 (480) x 15.0 (14.5) mm	Buy mainspring
