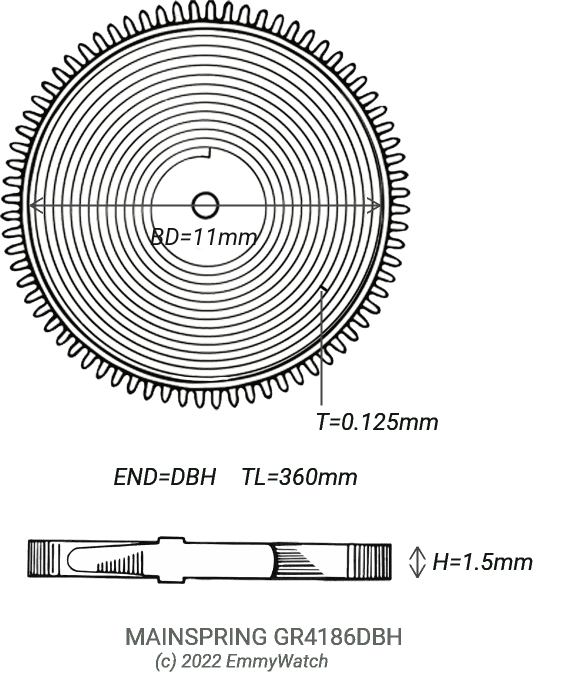

Mainspring
1.50 x 0.125 x 360 x 11.0 mm
GR Reference #: GR4186DBH
Height (H): 1.5mm
Thickness (T): 0.125mm
Total Length (TL): 360mm
Barrel Diameter (BD): 11mm
End Type: DBH
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Seiko 7N22-6A20 | SEIKO CASE REFERENCE (SEE FICH FOR MORE INFO) | |
| Standard 692 | 21600 BPH-SHOCK-ADJ STUD HOLD | 6.75 x 8 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
| Movement | Mainspring | Buy |
|---|---|---|
| IWC 89 | 1.50 x 0.115 (0.125) x 360 x 10.5 (11.0) mm | Buy mainspring |
No results found for your filter
