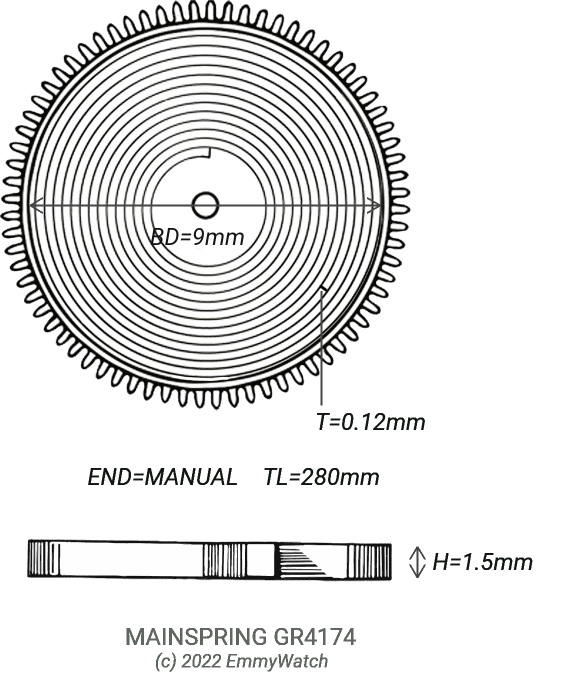

Mainspring

1.50 x 0.120 x 280 x 9.0 mm

GR Reference #: GR4174

Height (H): 1.5mm

Thickness (T): 0.12mm

Total Length (TL): 280mm

Barrel Diameter (BD): 9mm

End Type: Manual

The Barrel Diameter (BD) (9.0mm) is selected. Return to full mainspring page here.

Buy this mainspring

Similar Mainspring Listing

The Barrel Diameter (BD) (9.0mm) in this mainspring is also used by the following movements with similar mainsprings. When values differ the exact value is shown brackets for reference:

Movement	Mainspring	Buy
Bettlach 8423	1.50 x 0.130 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 8424	1.50 x 0.130 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 8425	1.50 x 0.130 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 8422	1.50 x 0.130 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 8429	1.50 x 0.130 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 8428	1.50 x 0.130 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 8421	1.50 x 0.130 (0.120) x 280 x 9.0 mm	Buy mainspring
Venus 226	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Venus 221	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Venus 220	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Venus 227	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Gruen 885	1.45 (1.50) x 0.110 (0.120) x 280 x 9.0 mm	Buy mainspring
Venus 222	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Venus 225	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Venus 223	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Dugena 559	1.45 (1.50) x 0.110 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 944	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Geneva Sport Watch 230	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 344	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 780	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 1554	1.50 x 0.105 (0.120) x 270 (280) x 9.0 mm	Buy mainspring
Bettlach 1553	1.50 x 0.105 (0.120) x 270 (280) x 9.0 mm	Buy mainspring
Bettlach 8020N	1.50 x 0.105 (0.120) x 270 (280) x 9.0 mm	Buy mainspring
A. Schild 806	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 1294	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 831	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Girard Perregaux 16	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Oris 293	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
A. Schild 1287	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 1280	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Precimax 400	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Oris 292	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Helbros 30	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 1040	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 1579	1.50 x 0.105 (0.120) x 270 (280) x 9.0 mm	Buy mainspring
Parrenin 81	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 333	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Parrenin 86	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Unitas 155	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Reconvilier 2321	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
A. Schild 922	1.45 (1.50) x 0.110 (0.120) x 260 (280) x 9.0 mm	Buy mainspring
Parrenin 90	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
A. Schild 340	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 324	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 341	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 8020	1.50 x 0.105 (0.120) x 270 (280) x 9.0 mm	Buy mainspring
A. Schild 1004	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 1255	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Roamer 435	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 689	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Oris 290	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Roamer 433	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Roamer 434	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Precimax 450	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Bettlach 1605	1.50 x 0.105 (0.120) x 270 (280) x 9.0 mm	Buy mainspring
Oris 291	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Parrenin 85	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Reconvilier 2323	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
A. Schild 307	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Unitas 156	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
A. Schild 346	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 347	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 384	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 389	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 436	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 467	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
Unitas 148	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
Unitas 150	1.50 x 0.110 (0.120) x 300 (280) x 9.0 mm	Buy mainspring
A. Schild 302	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 303	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 323	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 328	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 329	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 342	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 349	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 371	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 383	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 464	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 473	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
A. Schild 514	1.50 x 0.105 (0.120) x 280 x 9.0 mm	Buy mainspring
