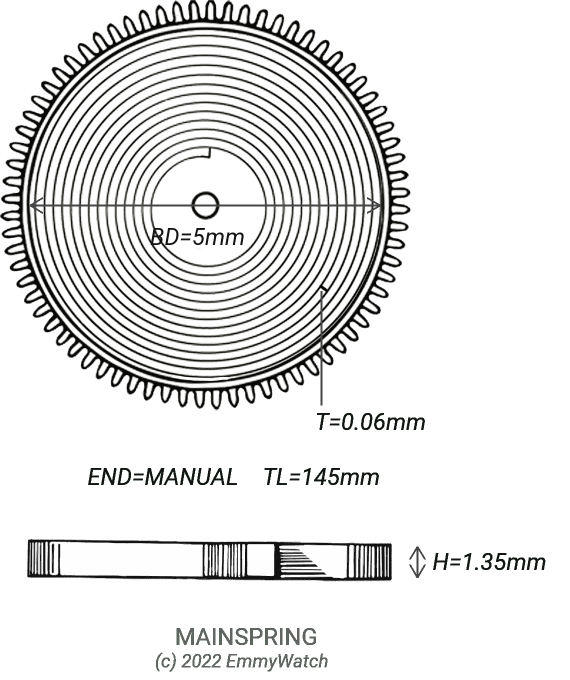

Mainspring
1.35 x 0.060 x 145 x 5.0 mm
Height (H): 1.35mm
Thickness (T): 0.06mm
Total Length (TL): 145mm
Barrel Diameter (BD): 5mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Bulova C832030 | BULOVA CASE REFERENCE | |
| Citizen 4-352777 | CITIZEN CASE | |
| Citizen 4-955552 | CITIZEN CASE | |
| Seiko 5931-5200 | SEIKO CASE REFERENCE | |
| Citizen 4-K04905 | CITIZEN CASE | |
| Citizen 4613A | ||
| Omega 111.0010 | OMEGA CASE USES CALIBER 620 | |
| Citizen 4613A | ||
| Omega 5296 | OMEGA CASE USES CALIBER 484/480 | |
| Omega 596.430 | OMEGA CASE USES CALIBER 1436 | |
| Omega 596.430 | OMEGA CASE USES CALIBER 1436 | |
| Seiko 4206-0720 | SEIKO CASE 971201 | |
| Seiko 4J81-0B20 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Citizen 4-K04905 | CITIZEN CASE | |
| Seiko 5931-5200 | SEIKO CASE REFERENCE | |
| Seiko 9531-5020 | SEIKO CASE REFERENCE | |
| Seiko V220-6660 | SEIKO CASE REFERENCE COSERVE 2003/2004 | |
| Wittnauer 11AHS | AUTOMATIC-DSS | 11.5 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
