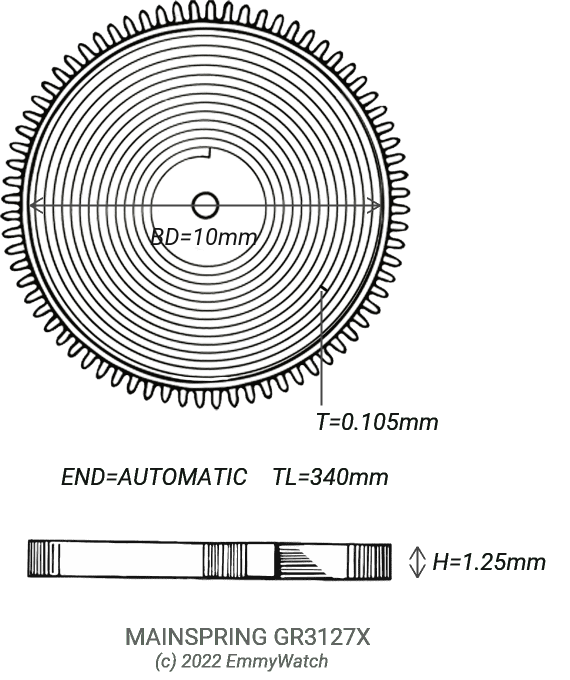

Mainspring

1.25 x 0.105 x 340 x 10.0 mm

GR Reference #: GR3127X

Height (H): 1.25mm

Thickness (T): 0.105mm

Total Length (TL): 340mm

Barrel Diameter (BD): 10mm

End Type: Auto

The Height (H) (1.25mm) is selected. Return to full mainspring page here.

Buy this mainspring

Similar Mainspring Listing

The Height (H) (1.25mm) in this mainspring is also used by the following movements with similar mainsprings. When values differ the exact value is shown brackets for reference:

Movement	Mainspring	Buy
Oris 645	1.25 x 0.105 x 360 (340) x 10.0 mm	Buy mainspring
Oris 640	1.25 x 0.105 x 360 (340) x 10.0 mm	Buy mainspring
Zenith 2522P	1.25 x 0.115 (0.105) x 340 x 10.0 mm	Buy mainspring
IWC 85	1.25 x 0.100 (0.105) x 340 x 10.5 (10.0) mm	Buy mainspring
IWC 852	1.25 x 0.100 (0.105) x 340 x 10.5 (10.0) mm	Buy mainspring
Ebel 213	1.25 x 0.110 (0.105) x 320 (340) x 10.0 mm	Buy mainspring
Ebel 214	1.25 x 0.110 (0.105) x 320 (340) x 10.0 mm	Buy mainspring
Favre Leuba 1134	1.25 x 0.110 (0.105) x 320 (340) x 10.0 mm	Buy mainspring
Favre Leuba 1149	1.25 x 0.110 (0.105) x 320 (340) x 10.0 mm	Buy mainspring
Favre Leuba 1152	1.25 x 0.110 (0.105) x 320 (340) x 10.0 mm	Buy mainspring
Girard Perregaux 32	1.25 x 0.120 (0.105) x 320 (340) x 10.0 mm	Buy mainspring
Girard Perregaux 31	1.25 x 0.120 (0.105) x 320 (340) x 10.0 mm	Buy mainspring
