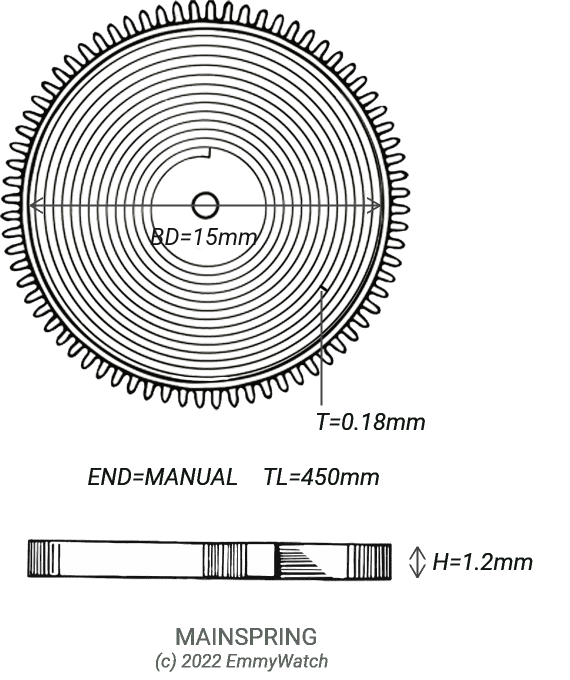

Mainspring
For Junghans 687.11
1.20 x 0.180 x 450 x 15.0 mm
Height (H): 1.2mm
Thickness (T): 0.18mm
Total Length (TL): 450mm
Barrel Diameter (BD): 15mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| A. Schild 1075 | NEGATIVE WINDING | 17.5 |
| Citizen 4-269438 | CITIZEN CASE | |
| Citizen 4-S13483 | CITIZE CASE REFERENCE | |
| ETA 2896 | 11.5 | |
| France Ebauches 163.4 | 21,600 BPH-SS-CALD-ADJ. STUD HOLDER | 8.75 |
| France Ebauches 163.4 | 21,600 BPH-SS-CALD-ADJ. STUD HOLDER | 8.75 |
| Hermann Becker 313 | DIRECT CENTER | 11.5 |
| Seiko 1000-7040 | SEIKO CASE REFERENCE | |
| Seiko 1104-5050 | SEIKO CASE REFERENCE | |
| Seiko W192-4020 | SEIKO CASE 08/12/98 | |
| Seiko Y112-7039 | PULSAR CASE REFERENCE |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
No results found for your filter
