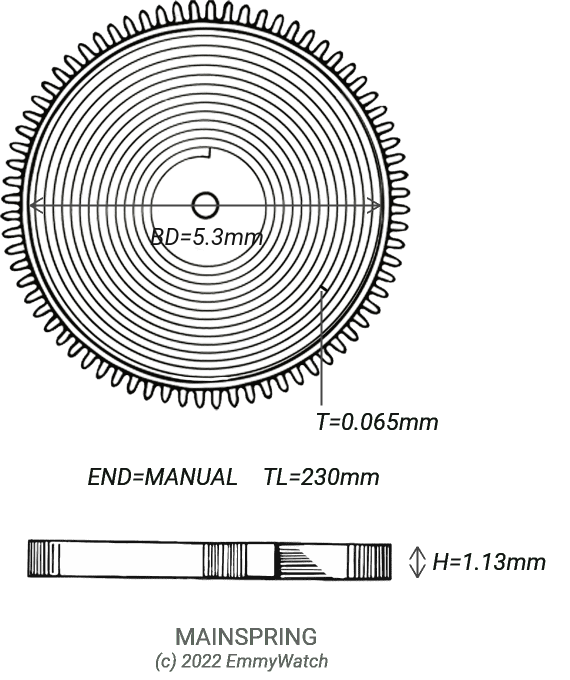

Mainspring
For A. Schild 701
1.13 x 0.065 x 230 x 5.3 mm
Height (H): 1.13mm
Thickness (T): 0.065mm
Total Length (TL): 230mm
Barrel Diameter (BD): 5.3mm
End Type: Manual
To look for similar mainsprings that exactly match a specific dimension, select it from the links above.
GR Approximation
This mainspring does not have a GR reference. The following GR mainsprings are the closest fit, when values differ the exact value is shown brackets for reference:
| GR Reference # | Mainspring | Buy |
|---|---|---|
| GR2556 | 1.10 (1.13) x 0.065 x 200 (230) x 5.5 (5.3) mm | Buy mainspring |
| GR2550 | 1.10 (1.13) x 0.060 (0.065) x 200 (230) x 5.5 (5.3) mm | Buy mainspring |
Movement Listing
This mainspring is used by the following movements:
| Movement | Description | Ligne |
|---|---|---|
| Omega 18450 | OMEGA CASE USES CALIBER 483/580 | |
| Seiko 5E21-6E70 | SEIKO CASE REFERENCE COSERVE 2003/2004 |
No results found for your filter
Similar Mainspring Listing
This mainspring is similar to the mainspring used by the following movements. A similar mainspring differs slightly in one or more dimensions but may possibly still work as a replacement. When values differ the exact value is shown brackets for reference:
| Movement | Mainspring | Buy |
|---|---|---|
| Vacheron Constantin 446 | 1.10 (1.13) x 0.060 (0.065) x 200 (230) x 5.5 (5.3) mm | Buy mainspring |
No results found for your filter
